YOLOv8n-Pose inherits the powerful object detection backbone and neck architecture of YOLOv8n. It extends the standard YOLOv8n object detection model by integrating dedicated pose estimation layers onto its head. This allows it to not only detect people (bboxes) but also simultaneously predict the spatial positions (keypoints) of their anatomical joints (e.g., shoulders, elbows, knees, ankles).

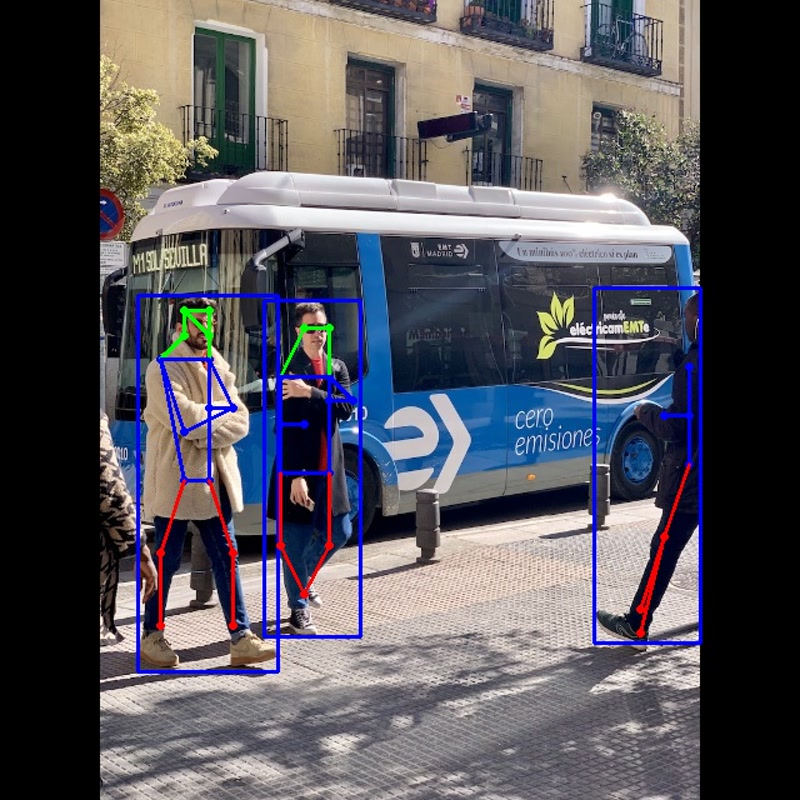

Inference results on VIM4.

Inference speed test: USB camera about 190ms per frame. MIPI camera about 140ms per frame.

Download the YOLOv8 official code. ultralytics/ultralytics

$ git clone https://github.com/ultralytics/ultralytics

Refer README.md to create and train a YOLOv8n-Pose model. My version torch==1.10.1 and ultralytics==8.0.86.

Get source khadas/vim4_npu_sdk.

$ git lfs install
$ git lfs clone https://github.com/khadas/vim4_npu_sdk
$ cd vim4_npu_sdk
$ ls
adla-toolkit-binary  adla-toolkit-binary-3.1.7.4  convert-in-docker.sh  Dockerfile  docs  README.md

After training the model, modify ultralytics/ultralytics/nn/modules/head.py as follows.

head.py

diff --git a/ultralytics/nn/modules/head.py b/ultralytics/nn/modules/head.py
index 0b02eb3..0a6e43a 100644
--- a/ultralytics/nn/modules/head.py
+++ b/ultralytics/nn/modules/head.py
@@ -42,6 +42,9 @@ class Detect(nn.Module):

     def forward(self, x):
         """Concatenates and returns predicted bounding boxes and class probabilities."""
+        if torch.onnx.is_in_onnx_export():
+            return self.forward_export(x)
+
         shape = x[0].shape  # BCHW
         for i in range(self.nl):
             x[i] = torch.cat((self.cv2[i](x[i]), self.cv3[i](x[i])), 1)
@@ -80,6 +83,15 @@ class Detect(nn.Module):
             a[-1].bias.data[:] = 1.0  # box
             b[-1].bias.data[:m.nc] = math.log(5 / m.nc / (640 / s) ** 2)  # cls (.01 objects, 80 classes, 640 img)

+    def forward_export(self, x):
+        results = []
+        for i in range(self.nl):
+            dfl = self.cv2[i](x[i]).contiguous()
+            cls = self.cv3[i](x[i]).contiguous()
+            results.append(torch.cat([cls, dfl], 1))
+        return tuple(results)
+

@@ -255,6 +283,16 @@ class Pose(Detect):
     def forward(self, x):
         """Perform forward pass through YOLO model and return predictions."""
         bs = x[0].shape[0]  # batch size
-        kpt = torch.cat([self.cv4[i](x[i]).view(bs, self.nk, -1) for i in range(self.nl)], -1)  # (bs, 17*3, h*w)
+        if torch.onnx.is_in_onnx_export():
+            kpt = [self.cv4[i](x[i]) for i in range(self.nl)]
+        else:
+            kpt = torch.cat([self.cv4[i](x[i]).view(bs, self.nk, -1) for i in range(self.nl)], -1)  # (bs, 17*3, h*w)
         x = self.detect(self, x)
+
+        if torch.onnx.is_in_onnx_export():
+            output = []
+            for i in range(self.nl):
+                output.append((torch.cat([x[i], kpt[i]], dim=1)))
+            return output

Create a python file written as follows to export ONNX model.

export.py

from ultralytics import YOLO
model = YOLO("./runs/pose/train/weights/best.pt")
results = model.export(format="onnx")

$ python export.py

Pull yolov8n_pose.onnx model into vim4_npu_sdk/adla-toolkit-binary-3.1.7.4/python and then run convert-in-docker.sh

$ ./convert-in-docker.sh ksnn

If your yolov8n_pose model parameters are different from ours, you can change parameters in ksnn_args.txt.

Download KSNN library and demo code. khadas/ksnn-vim4

$ git clone https://github.com/khadas/ksnn-vim4.git

If you use Ubuntu 24.04, demo must run in python virtual environment.

Create and start python virtual environment.

$ sudo apt update
$ sudo apt install python3-venv
$ python3 -m venv myenv
$ source myenv/bin/activate

Install KSNN package.

$ cd ksnn-vim4/ksnn
$ sudo apt update
$ sudo apt install python3-pip
$ pip3 install ksnn_vim4-1.4.1-py3-none-any.whl

Put yolov8n_pose.nb and libnn_yolov8n_pose.so into ksnn/examples/yolov8n_pose/models/VIM4 and ksnn/examples/yolov8n_pose/libs

If your model's classes is not 80, please remember to modify the parameter, LISTSIZE.

LISTSIZE = classes number + 64

$ cd ksnn/examples/yolov8n_pose
$ export QT_QPA_PLATFORM=xcb
$ python3 yolov8n_pose-picture.py --model ./models/VIM4/yolov8n_pose_int8.adla --library ./libs/libnn_yolov8n_pose.so --picture ./data/bus.jpg --level 0

$ cd ksnn/examples/yolov8n_pose
$ export QT_QPA_PLATFORM=xcb

# USB Camera
$ python3 yolov8n_pose-cap.py --model ./models/VIM4/yolov8n_pose_int8.adla --library ./libs/libnn_yolov8n_pose.so --type usb --device 0

# MIPI Camera
$ python3 yolov8n_pose-cap.py --model ./models/VIM4/yolov8n_pose_int8.adla --library ./libs/libnn_yolov8n_pose.so --type mipi --device 63

0 is the camera device index.

$ pip3 uninstall opencv-python
$ sudo apt install python3-opencv
