YOLOv8n-Pose inherits the powerful object detection backbone and neck architecture of YOLOv8n. It extends the standard YOLOv8n object detection model by integrating dedicated pose estimation layers onto its head. This allows it to not only detect people (bboxes) but also simultaneously predict the spatial positions (keypoints) of their anatomical joints (e.g., shoulders, elbows, knees, ankles).

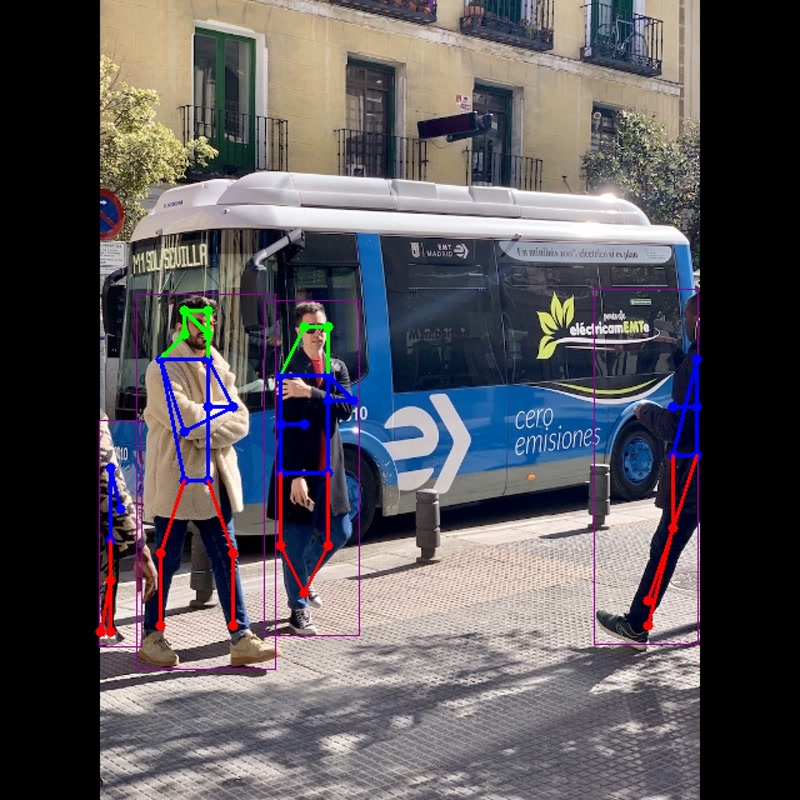

Inference results on VIM4.

Inference speed test: USB camera about 90ms per frame.

Download YOLOv8 official code ultralytics/ultralytics

$ git clone https://github.com/ultralytics/ultralytics

Refer README.md to train a YOLOv8n-Pose model. My version torch==1.10.1 and ultralytics==8.0.86.

Follow Docker official documentation to install Docker: Install Docker Engine on Ubuntu.

Follow the script below to get Docker image:

docker pull numbqq/npu-vim4

Get source khadas/vim4_npu_sdk.

$ git lfs install
$ git lfs clone https://github.com/khadas/vim4_npu_sdk
$ cd vim4_npu_sdk
$ ls
adla-toolkit-binary  adla-toolkit-binary-3.1.7.4  convert-in-docker.sh  Dockerfile  docs  README.md

• adla-toolkit-binary/docs - SDK documentations
• adla-toolkit-binary/bin - SDK tools required for model conversion
• adla-toolkit-binary/demo - Conversion examples

After training model, modify Class Detect and Class Pose in ultralytics/ultralytics/nn/modules/head.py as follows. (If you use ultralytics==8.0.86, the class in ultralytics/ultralytics/nn/modules.py)

head.py

diff --git a/ultralytics/nn/modules/head.py b/ultralytics/nn/modules/head.py
index 0b02eb3..0a6e43a 100644
--- a/ultralytics/nn/modules/head.py
+++ b/ultralytics/nn/modules/head.py
@@ -42,6 +42,9 @@ class Detect(nn.Module):

     def forward(self, x):
         """Concatenates and returns predicted bounding boxes and class probabilities."""
+        if torch.onnx.is_in_onnx_export():
+            return self.forward_export(x)
+
         shape = x[0].shape  # BCHW
         for i in range(self.nl):
             x[i] = torch.cat((self.cv2[i](x[i]), self.cv3[i](x[i])), 1)
@@ -80,6 +83,15 @@ class Detect(nn.Module):
             a[-1].bias.data[:] = 1.0  # box
             b[-1].bias.data[:m.nc] = math.log(5 / m.nc / (640 / s) ** 2)  # cls (.01 objects, 80 classes, 640 img)

+    def forward_export(self, x):
+        results = []
+        for i in range(self.nl):
+            dfl = self.cv2[i](x[i]).contiguous()
+            cls = self.cv3[i](x[i]).contiguous()
+            results.append(torch.cat([cls, dfl], 1))
+        return tuple(results)
+

@@ -255,6 +283,16 @@ class Pose(Detect):
     def forward(self, x):
         """Perform forward pass through YOLO model and return predictions."""
         bs = x[0].shape[0]  # batch size
-        kpt = torch.cat([self.cv4[i](x[i]).view(bs, self.nk, -1) for i in range(self.nl)], -1)  # (bs, 17*3, h*w)
+        if torch.onnx.is_in_onnx_export():
+            kpt = [self.cv4[i](x[i]) for i in range(self.nl)]
+        else:
+            kpt = torch.cat([self.cv4[i](x[i]).view(bs, self.nk, -1) for i in range(self.nl)], -1)  # (bs, 17*3, h*w)
         x = self.detect(self, x)
+
+        if torch.onnx.is_in_onnx_export():
+            output = []
+            for i in range(self.nl):
+                output.append((torch.cat([x[i], kpt[i]], dim=1)))
+            return output

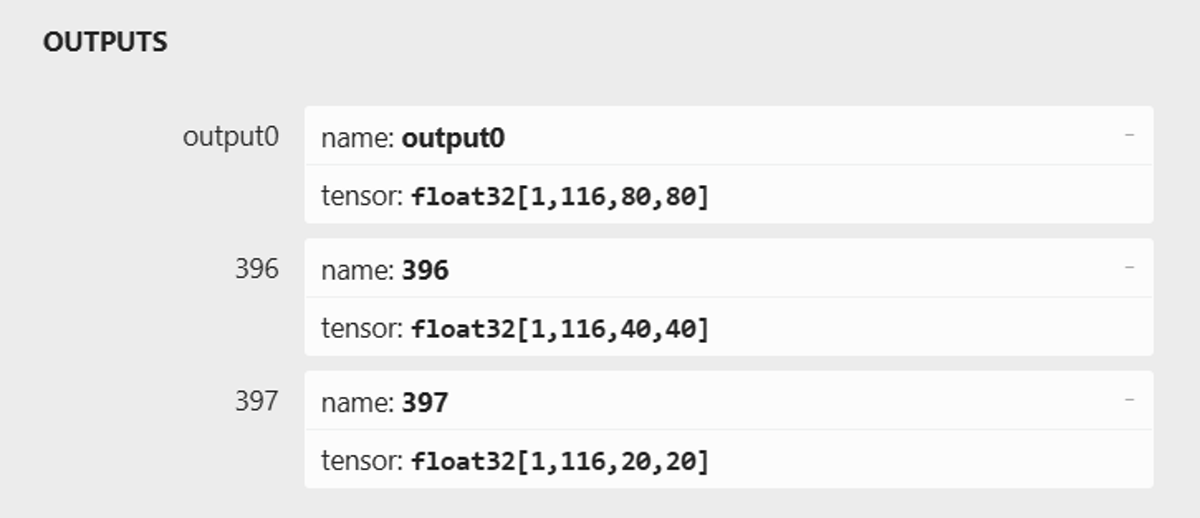

Create a python file written as follows to export ONNX model.

export.py

from ultralytics import YOLO
model = YOLO("./runs/pose/train/weights/best.pt")
results = model.export(format="onnx")

$ python export.py

Enter vim4_npu_sdk/demo and modify convert_adla.sh as follows.

convert_adla.sh

#!/bin/bash

ACUITY_PATH=../bin/
#ACUITY_PATH=../python/tvm/
adla_convert=${ACUITY_PATH}adla_convert


if [ ! -e "$adla_convert" ]; then
    adla_convert=${ACUITY_PATH}adla_convert.py
fi

$adla_convert --model-type onnx \
        --model ./model_source/yolov8n_pose/yolov8n_pose.onnx \
        --inputs "images" \
        --input-shapes  "3,640,640"  \
        --dtypes "float32" \
        --quantize-dtype int16 --outdir onnx_output  \
        --channel-mean-value "0,0,0,255"  \
        --inference-input-type "float32" \
        --inference-output-type "float32" \
        --source-file dataset.txt  \
        --batch-size 1 --target-platform PRODUCT_PID0XA003

Run convert_adla.sh to generate VIM4 model. The converted model is xxx.adla in onnx_output.

$ bash convert_adla.sh

Clone the source code from our khadas/vim4_npu_applications.

$ git clone https://github.com/khadas/vim4_npu_applications

$ sudo apt update
$ sudo apt install libopencv-dev python3-opencv cmake

Put yolov8n_pose_int8.adla in vim4_npu_applications/yolov8n_pose/data/.

# Compile
$ cd vim4_npu_applications/yolov8n_pose
$ mkdir build
$ cd build
$ cmake ..
$ make

# Run
$ ./yolov8n_pose -m ../data/yolov8n_pose_int8.adla -p ../data/bus.jpg

Put yolov8n_pose_int8.adla in vim4_npu_applications/yolov8n_pose_cap/data/.

# Compile
$ cd vim4_npu_applications/yolov8n_pose_cap
$ mkdir build
$ cd build
$ cmake ..
$ make

# Run
$ ./yolov8n_pose_cap -m ../data/yolov8n_pose_int8.adla -t usb -d 0

0 is camera device index.
