YOLOv8n-Pose KSNN Demo - 8

Introduction

YOLOv8n-Pose inherits the powerful object detection backbone and neck architecture of YOLOv8n. It extends the standard YOLOv8n object detection model by integrating dedicated pose estimation layers onto its head. This allows it to not only detect people (bboxes) but also simultaneously predict the spatial positions (keypoints) of their anatomical joints (e.g., shoulders, elbows, knees, ankles).

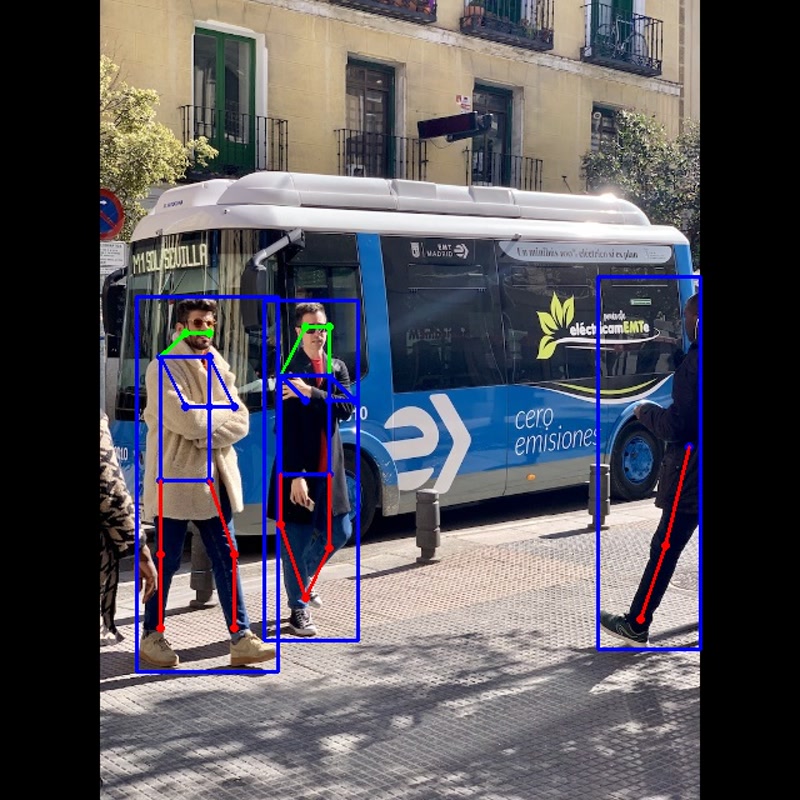

Inference results on VIM3.

Inference speed test: USB camera about 182ms per frame. MIPI camera about 156ms per frame.

Train the model

Download the YOLOv8 official code. ultralytics/ultralytics

$ git clone https://github.com/ultralytics/ultralytics

Refer README.md to create and train a YOLOv8n-Pose model. My version torch==1.10.1 and ultralytics==8.0.86.

Convert the model

Get the conversion tool

$ git lfs install
$ git lfs clone https://github.com/khadas/aml_npu_sdk

The KSNN conversion tool is under acuity-toolkit/python.

$ cd aml_npu_sdk/acuity-toolkit/python && ls
$ convert  data  outputs

Convert

After training model, modify Class Detect and Class Pose in ultralytics/ultralytics/nn/modules/head.py as follows. (If you use ultralytics==8.0.86, the class in ultralytics/ultralytics/nn/modules.py)

head.py
diff --git a/ultralytics/nn/modules/head.py b/ultralytics/nn/modules/head.py
index 0b02eb3..0a6e43a 100644
--- a/ultralytics/nn/modules/head.py
+++ b/ultralytics/nn/modules/head.py
@@ -42,6 +42,9 @@ class Detect(nn.Module):

     def forward(self, x):
         """Concatenates and returns predicted bounding boxes and class probabilities."""
+        if torch.onnx.is_in_onnx_export():
+            return self.forward_export(x)
+
         shape = x[0].shape  # BCHW
         for i in range(self.nl):
             x[i] = torch.cat((self.cv2[i](x[i]), self.cv3[i](x[i])), 1)
@@ -80,6 +83,15 @@ class Detect(nn.Module):
             a[-1].bias.data[:] = 1.0  # box
             b[-1].bias.data[:m.nc] = math.log(5 / m.nc / (640 / s) ** 2)  # cls (.01 objects, 80 classes, 640 img)

+    def forward_export(self, x):
+        results = []
+        for i in range(self.nl):
+            dfl = self.cv2[i](x[i]).contiguous()
+            cls = self.cv3[i](x[i]).contiguous()
+            results.append(torch.cat([cls, dfl], 1))
+        return tuple(results)
+

@@ -255,6 +283,16 @@ class Pose(Detect):
     def forward(self, x):
         """Perform forward pass through YOLO model and return predictions."""
         bs = x[0].shape[0]  # batch size
-        kpt = torch.cat([self.cv4[i](x[i]).view(bs, self.nk, -1) for i in range(self.nl)], -1)  # (bs, 17*3, h*w)
+        if torch.onnx.is_in_onnx_export():
+            kpt = [self.cv4[i](x[i]) for i in range(self.nl)]
+        else:
+            kpt = torch.cat([self.cv4[i](x[i]).view(bs, self.nk, -1) for i in range(self.nl)], -1)  # (bs, 17*3, h*w)
         x = self.detect(self, x)
+
+        if torch.onnx.is_in_onnx_export():
+            output = []
+            for i in range(self.nl):
+                output.append((torch.cat([x[i], kpt[i]], dim=1)))
+            return output

If you pip-installed ultralytics package, you should modify in package.

Create a python file written as follows to export ONNX model.

export.py
from ultralytics import YOLO
model = YOLO("./runs/pose/train/weights/best.pt")
results = model.export(format="onnx")
$ python export.py

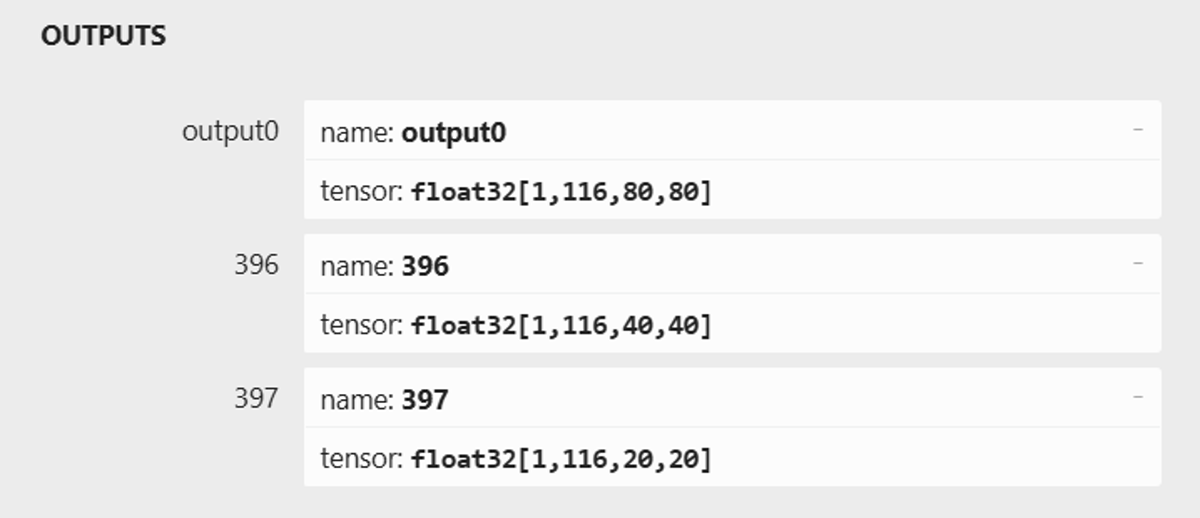

Use Netron to check your model output like this. If not, please check your head.py.

Enter aml_npu_sdk/acuity-toolkit/python and run command as follows.

# uint8
$ ./convert --model-name yolov8n_pose \
            --platform onnx \
            --model yolov8n_pose.onnx \
            --mean-values '0 0 0 0.00392156' \
            --quantized-dtype asymmetric_affine \
            --source-files ./data/dataset/dataset0.txt \
            --batch-size 1 \
            --iterations 1 \
            --kboard VIM3 --print-level 0

Now KSNN only supports batch-size = 1.

If you want to use more quantified images, please modify batch-size and iterations. batch-size×iterations=number of quantified images. The number of quantified images has better between 200 and 500.

If you use VIM3L , please use VIM3L to replace VIM3.

If run succeed, converted model and library will generate in outputs/yolov8n_pose.

If your YOLOv8n-Pose model perform bad on board, please try quanfity model in int8 or int16.

# int8
$ ./convert --model-name yolov8n_pose \
            --platform onnx \
            --model yolov8n_pose.onnx \
            --mean-values '0 0 0 0.00392156' \
            --quantized-dtype dynamic_fixed_point \
            --qtype int8 \
            --source-files ./data/dataset/dataset0.txt \
            --batch-size 1 \
            --iterations 1 \
            --kboard VIM3 --print-level 0

# int16
$ ./convert --model-name yolov8n_pose \
            --platform onnx \
            --model yolov8n_pose.onnx \
            --mean-values '0 0 0 0.00392156' \
            --quantized-dtype dynamic_fixed_point \
            --qtype int16 \
            --source-files ./data/dataset/dataset0.txt \
            --batch-size 1 \
            --iterations 1 \
            --kboard VIM3 --print-level 0

Run inference on the NPU by KSNN

Install KSNN

Download KSNN library and demo code. khadas/ksnn

$ git clone --recursive https://github.com/khadas/ksnn.git
$ cd ksnn/ksnn
$ pip3 install ksnn-1.3-py3-none-any.whl

If your kernel version is 5.15, use ksnn-1.4-py3-none-any.whl instead of ksnn-1.3-py3-none-any.whl.

Install dependencies

$ pip3 install matplotlib

Put yolov8n_pose.nb and libnn_yolov8n_pose.so into ksnn/examples/yolov8n_pose/models/VIM3 and ksnn/examples/yolov8n_pose/libs

Picture input demo

$ cd ksnn/examples/yolov8n_pose
$ python3 yolov8n-pose-picture.py --model ./models/VIM3/yolov8n_pose_uint8.nb --library ./libs/libnn_yolov8n_pose.so --picture ./data/bus.jpg --level 0

Camera input demo

For USB camera.

# usb
$ cd ksnn/examples/yolov8n_pose
$ python3 yolov8n-pose-cap.py --model ./models/VIM3/yolov8n_pose_uint8.nb --library ./libs/libnn_yolov8n_pose.so --type usb --device 0

For MIPI camera, OpenCV do not support GSTREAMER by pip install. So you need to install OpenCV by sudo apt install.

# mipi
$ pip3 uninstall opencv-python numpy
$ sudo apt install python3-opencv
$ pip3 install numpy==1.23
$ cd ksnn/examples/yolov8n_pose
$ python3 yolov8n-pose-cap.py --model ./models/VIM3/yolov8n_pose_uint8.nb --library ./libs/libnn_yolov8n_pose.so --type mipi --device 50

0 and 50 are the camera device index.
