DenseNet CTC ONNX Keras Edge2 Demo - 3

Get Source Code

We will use a DenseNet model based on YCG09/chinese_ocr.

git clone https://github.com/YCG09/chinese_ocr.git

Convert Model

Build virtual environment

The SDK only supports python3.6 or python3.8, here is an example of creating a virtual environment for python3.8.

Install python packages.

$ sudo apt update
$ sudo apt install python3-dev python3-numpy

Follow this docs to install conda.

Then create a virtual environment.

$ conda create -n npu-env python=3.8
$ conda activate npu-env     #activate
$ conda deactivate           #deactivate

Get convert tool

Download Tool from rockchip-linux/rknn-toolkit2.

$ git clone https://github.com/rockchip-linux/rknn-toolkit2.git
$ git checkout 9ad79343fae625f4910242e370035fcbc40cc31a

Install dependences and RKNN toolkit2 packages.

$ cd rknn-toolkit2
$ sudo apt-get install python3 python3-dev python3-pip
$ sudo apt-get install libxslt1-dev zlib1g-dev libglib2.0 libsm6 libgl1-mesa-glx libprotobuf-dev gcc cmake
$ pip3 install -r doc/requirements_cp38-*.txt
$ pip3 install packages/rknn_toolkit2-*-cp38-cp38-linux_x86_64.whl

Convert

After training model, run the codes as follows to modify net input and output and convert model to onnx.

Keras model(.h5) can convert rknn model directly. If you want to convert keras model, please use model.save to save model with weight and network structure.

export.py
import onnx
from keras.models import *
import keras
import keras2onnx
from train import get_model
import densenet

basemodel, model = get_model(32, 88) # input height, classes number
basemodel.load_weights("models/weights_densenet-32-0.40.h5")
onnx_model = keras2onnx.convert_keras(basemodel, basemodel.name, target_opset=12)
onnx_model.graph.input[0].type.tensor_type.shape.dim[0].dim_value = int(1)
onnx_model.graph.input[0].type.tensor_type.shape.dim[1].dim_value = int(1)
onnx_model.graph.input[0].type.tensor_type.shape.dim[2].dim_value = int(32)
onnx_model.graph.input[0].type.tensor_type.shape.dim[3].dim_value = int(280)
onnx_model.graph.output[0].type.tensor_type.shape.dim[0].dim_value = int(1)
onnx_model.graph.node.remove(onnx_model.graph.node[0])
onnx_model.graph.node[0].input[0] = "the_input"
onnx.save_model(onnx_model, "./densenet_ctc.onnx")

Enter rknn-toolkit2/examples/onnx/yolov5 and modify test.py as follows.

test.py
# Create RKNN object
rknn = RKNN(verbose=True)

# pre-process config
print('--> Config model')
rknn.config(mean_values=[0], std_values=[255], target_platform='rk3588')
print('done')

# Load ONNX model
print('--> Loading model')
ret = rknn.load_onnx(model='./densenet_ctc.onnx')
if ret != 0:
    print('Load model failed!')
    exit(ret)
print('done')

# Build model
print('--> Building model')
ret = rknn.build(do_quantization=True, dataset='./dataset.txt')
if ret != 0:
    print('Build model failed!')
    exit(ret)
print('done')

# Export RKNN model
print('--> Export rknn model')
ret = rknn.export_rknn('./densenet_ctc.rknn')
if ret != 0:
    print('Export rknn model failed!')
    exit(ret)
print('done')

Run test.py to generate rknn model.

$ python3 test.py

Run NPU

Get source code

Clone the source code from our khadas/edge2-npu.

$ git clone https://github.com/khadas/edge2-npu

Install dependencies

$ sudo apt update
$ sudo apt install cmake libopencv-dev

Compile and run

Picture input demo

Put densenet_ctc.rknn in edge2-npu/C++/densenet_ctc/data/model.

# Compile
$ cd edge2-npu/C++/densenet_ctc
$ bash build.sh

# Run
$ cd install/densenet_ctc

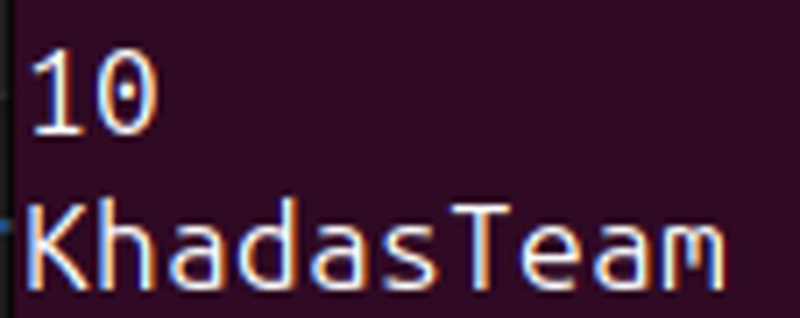

$ ./densenet_ctc data/model/densenet_ctc.rknn data/img/KhadasTeam.png

If your DenseNet CTC model classes is not the same as mine, please change data/class_str.txt and the OBJ_CLASS_NUM in include/postprocess.h.
